Rotate

Click Rotate image\ROTATE.gif to rotate entities.


Rotate allows you to rotate entites visually, optionally aligning them to another entitiy.

  1. Select the entities you wish to rotate.

image\button.gif%HowTo_SelectEntities>howtomap How?%HowTo_SelectEntities>howtomap

The prompt reads "Rotate Reference point:"

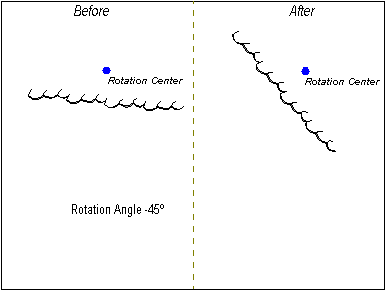

  1. Click a point around which to rotate the entities. Press SHIFT to snap the angle of rotation to the nearest 15°.

The prompt reads "SHIFT=15° Snap [align to object]:"

  1. To align to another entity, right click. Click the edge on your selection you wish to align. Click an edge on another entity you wish to align to. The command finishes.

  2. Click to complete the rotation.

Note

Text Equivalent: ROT
