Non-Visual Scale XY

Right-click Scale image\SCALE.gif to access Scale XY.

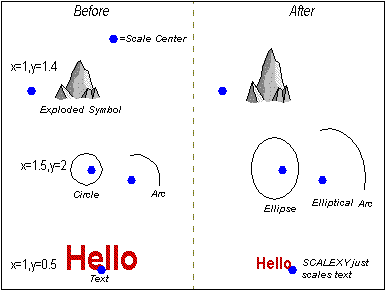

SCALE XY reshapes selected entities, scaling them by different amounts horizontally (x) and vertically (y).

  1. Select the entities to scaleXY.

  2. The prompt reads "Scale X by [n]:". If you wish to accept the default, right-click or press ENTER. To enter a new scaling factor, type a scaling and press ENTER. Scaling factors > 1 will make entities larger. Scaling factors < 1 will make entities smaller. For example, to make the selected entities twice as large in the X direction as they are now, type "2" and press ENTER. To make them half as large in the X direction, type ".5" and press ENTER.

  3. The prompt reads "Scale Y by [n]:". Select or enter a value as you did for Scale X.

  4. The prompt reads "Scale center [x,y]:". The scale center is the point around which CC3 should scale the entities. To define the scale center:

· Right-click or press ENTER to accept the default or prior center;

· Use the cursor to visually select a center point (may be combined with modifiers), or;

· Type numeric coordinates and press ENTER.

CC3 redraws the entities at the new X and Y scales. The scale center remains fixed.

Text equivalent: SCALEXY
