Non-Visual Mirror

Right-click Move, Scale Rotate image\MOVE.gif, to access Mirror.

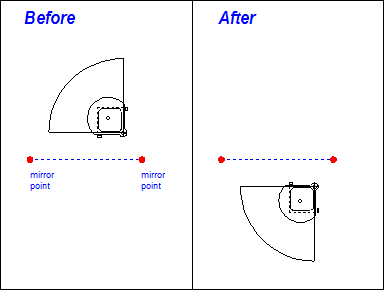

MIRROR transforms an entity into a mirror image of itself, flipped over a mirror line that you specify.

  1. Select entities to connect using the Entity Selection dialog box.

  2. The prompt reads "Mirror line start:". Select the mirror line’s starting point.

  3. The prompt reads "Mirror line end:". Select the mirror line’s ending point. The mirror line can be drawn at any angle.

CC3 flips the entities and terminates the command.

Text equivalent: MIRROR
