Arcs: Center, Start, End

To draw this arc, right click Arc

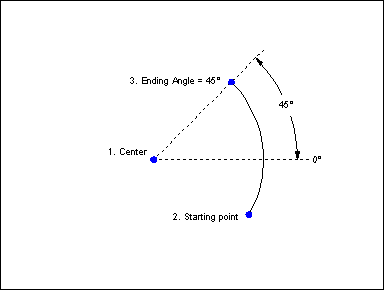

CENTER, START, END draws an arc from a specified center point, a start point (that defines both the radius and the starting angle), and an ending angle

1. The prompt reads "Center [x,y]:". To define the center of the arc:

· Right-click or press ENTER to accept the default or prior center;

· Use the cursor to visually select a center point (may be combined with modifiers%hlp_def_modifiers), or;

· Type numeric coordinates%hlp_def_ncoords and press ENTER.

CC3 displays a circular dynamic cursor.

1. The prompt reads "|DynTrack| Starting Point:". The starting point tells CC3 both the radius of the arc and its starting angle. To specify the starting point:

· use the stretching circular cursor that is displayed, or;

· Type numeric coordinates and press ENTER.

2. The prompt reads "|DynTrack| Ending Angle:". Specify the ending angle by using the stretching arc cursor that is displayed, pressing the left button when the arc looks the way you want, or type in an angle.

CC3 draws the arc counterclockwise from the starting point to the ending angle.

Note: When the prompt displays DynTrack, you can hold down the SHIFT key to "pick up" and move the arc (redefine the center point). Also, you can hold down the CTRL key to visually adjust the radius.

Text equivalent: ARCS
