Arcs: Start, Middle and End

To draw this arc, right click Arcimage\ARCB.gif

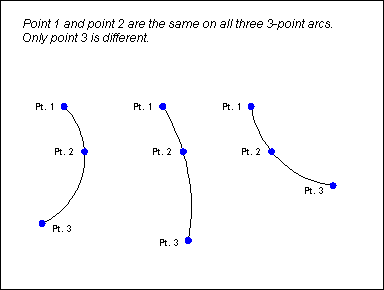

START, MIDDLE AND END draws an arc from a starting point, a point on the arc, and an ending point.

  1. The prompt reads "1st Point:". Specify the 1st point by using the cursor or by typing numeric coordinates.

  2. Select the 2nd and 3rd points in a similar manner. You can enter the points either clockwise or counterclockwise. A stretching arc cursor is displayed after you place the second point.

CC3 draws the final arc from the first point, through the second, and to the third point.

Please note: If you select three points in a straight line, an arc would be mathematically impossible, so CC3 displays a message box: "Can't create entity because: Three points are in a straight line." Choose the OK button or press ENTER to clear the message.

Text equivalent: ARC3
