when the command prompt requests a point to use this modifier.Click Midpoint when the command prompt requests a point to use this modifier.

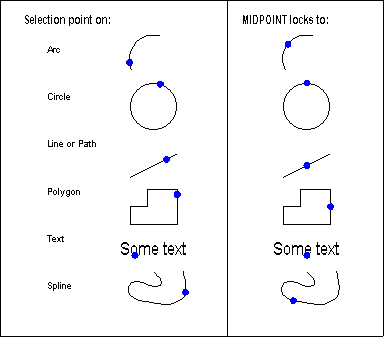

MIDPOINT locks to the midpoint of certain entities. As with all modifiers, you must first select a drawing or editing command. When you select MIDPOINT, the prompt reads "Select reference entity:". Select a point on the entity you want the midpoint of. Please refer to the chart below for the effect of MIDPOINT on various types of entities.
Entity |
Midpoint locks on to |
|
Arc |
Halfway along arc |
|
Arrow, Line, Wall, Path, or Polygon |
Middle of nearest line segment |
|
Circle |
Nearest quarter-circle (0°, 90°,180°,270°). |
|
Ellipse |
Nearest end of either axis |
|
Point |
On the point |
|
Smooth Polygon or Spline |
Middle of nearest frame segment |
|
Text |
Middle of text, along baseline |
Text equivalent: MID (or press function key F3)
